24 /7 parcel delivery locker/station

FOB Reference Price:Get Latest Price
US $3,600-4,800 / Pieces | 5 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Other Commercial Furniture
General Use:
Commercial Furniture
Appearance:
Modern
Folded:
No
Size:
1900*550*1284mm
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
ANZI
Model Number:
DBS-N155
Materail:
Cold rolled steel
Color:
customerized
Usage:
Outdoor
Keyword:
24 /7 parcel delivery locker/station
Place of using:
Shopping Mall Etc
Function:
parcel delivery
Style:
Modern Attractive
Logo:
Customer's Logo Accepted
Certification:
ISO9001/CE
Product name:
24 /7 parcel delivery locker/station
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Pallet
Port
Shanghai/Ningbo
Lead Time :
20~30 days after deposit
Video Description
Product Description

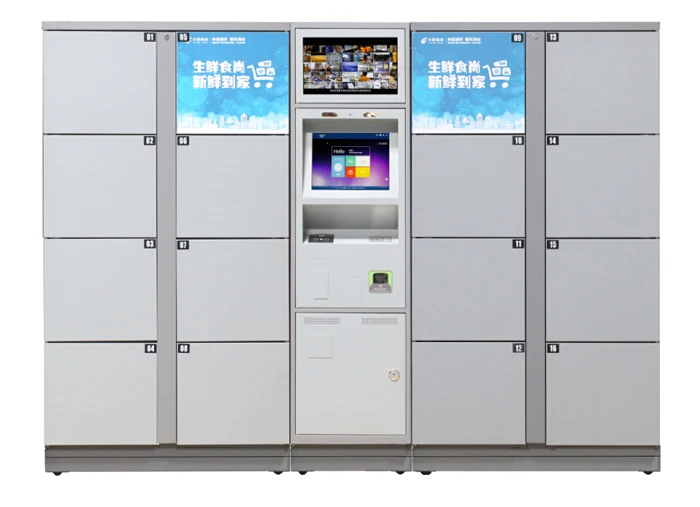

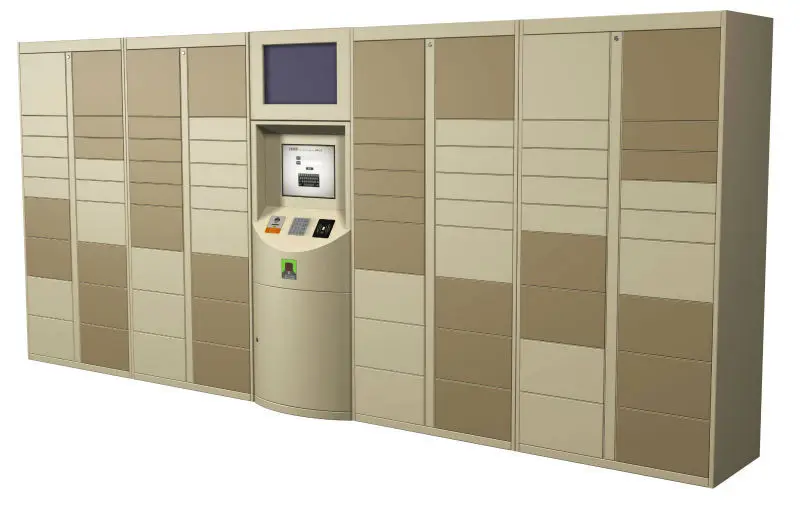

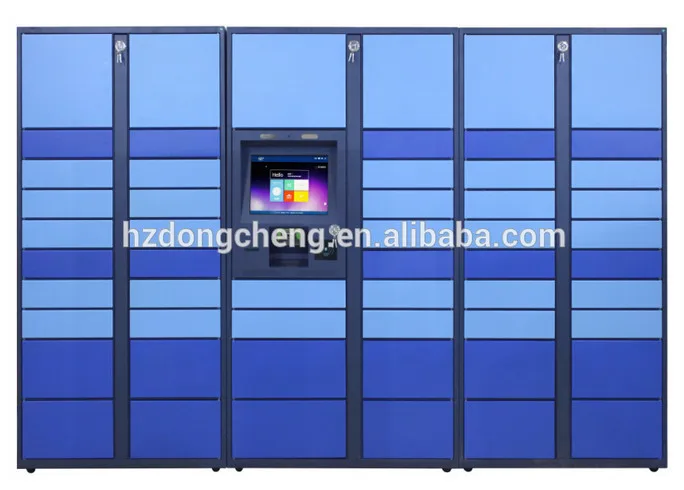

4 column 24 /7 parcel delivery locker/station



     1. 4 column 24 /7 parcel delivery locker/station
     2.Save delivery time
     3.improve efficiency on transceiver
     4.Save logistics distribution cost

parcel locker green.jpg

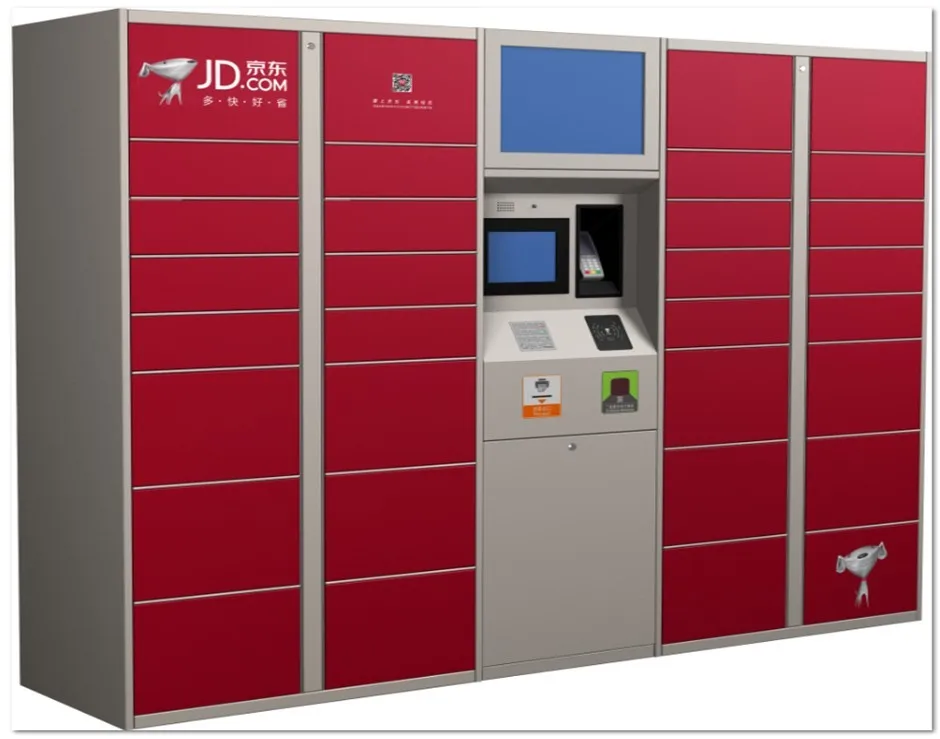

parcel locker - jingdong

116

1412902689080_hz-fileserver-upload-05_6620533

  Product Description

  • control unit with 2/n modular units (extensible)
  • 32/n Boxes with size of Big, Middle and Small (Extensible)
  • 19' touch screen Operating
  • Multi-fuctions with high-end configuration
  • Manually operation in emergency case
  • Remote monitor and control
  • SMS notice

  Product Specification



Outline dimension

Openings

locker size

1700W*430D*1890Hmm

12

320W*430D*600Hmm

1700W*430D*1890Hmm

16

450W*320D*430Hmm

1700W*430D*1890Hmm

20

320W*430D*360Hmm

1700W*430D*1890Hmm

24

320W*430D*300Hmm

2160W*430D*1890Hmm

24

300W*430D*300Hmm

1700W*430D*1890Hmm

28

320W*430D*260Hmm

2160W*430D*1890Hmm

36

300W*430D*300Hmm

3200W*430D*1890Hmm

48

320W*430D*300Hmm





Configuration



CPU: intel Atom

1G RAM

16G storage

4 USB port

1 RS-485

5 RS-232

19’ Touch screen

QR code scanner

IC ID card reader

GSM module

Wife module

Metal keyboard

speaker

Epson printer







Technical specification



Standby power

Supply voltage

Environment temperature

Environment humidity

<50W

AC 110/220V±15%
  (as the power standard of customer’s country)

-10°C-50°C

5%-95%RH

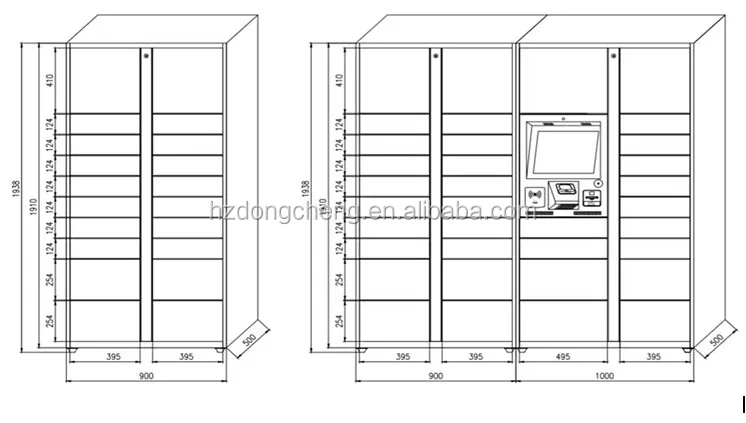

Diagram of parcel locker


 Product standard work flow

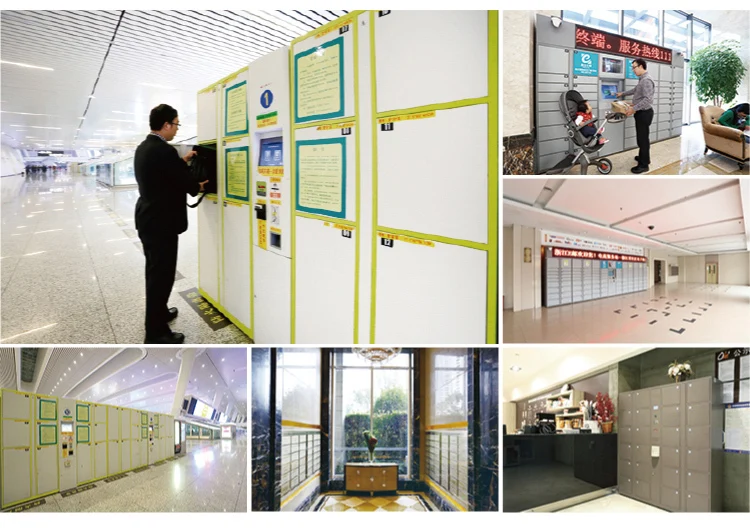

 Product Application


 Product Certificate


 Packing and delivery

 Company View and Customer Reference
company view.jpg
